SF10000NMFE

Overview

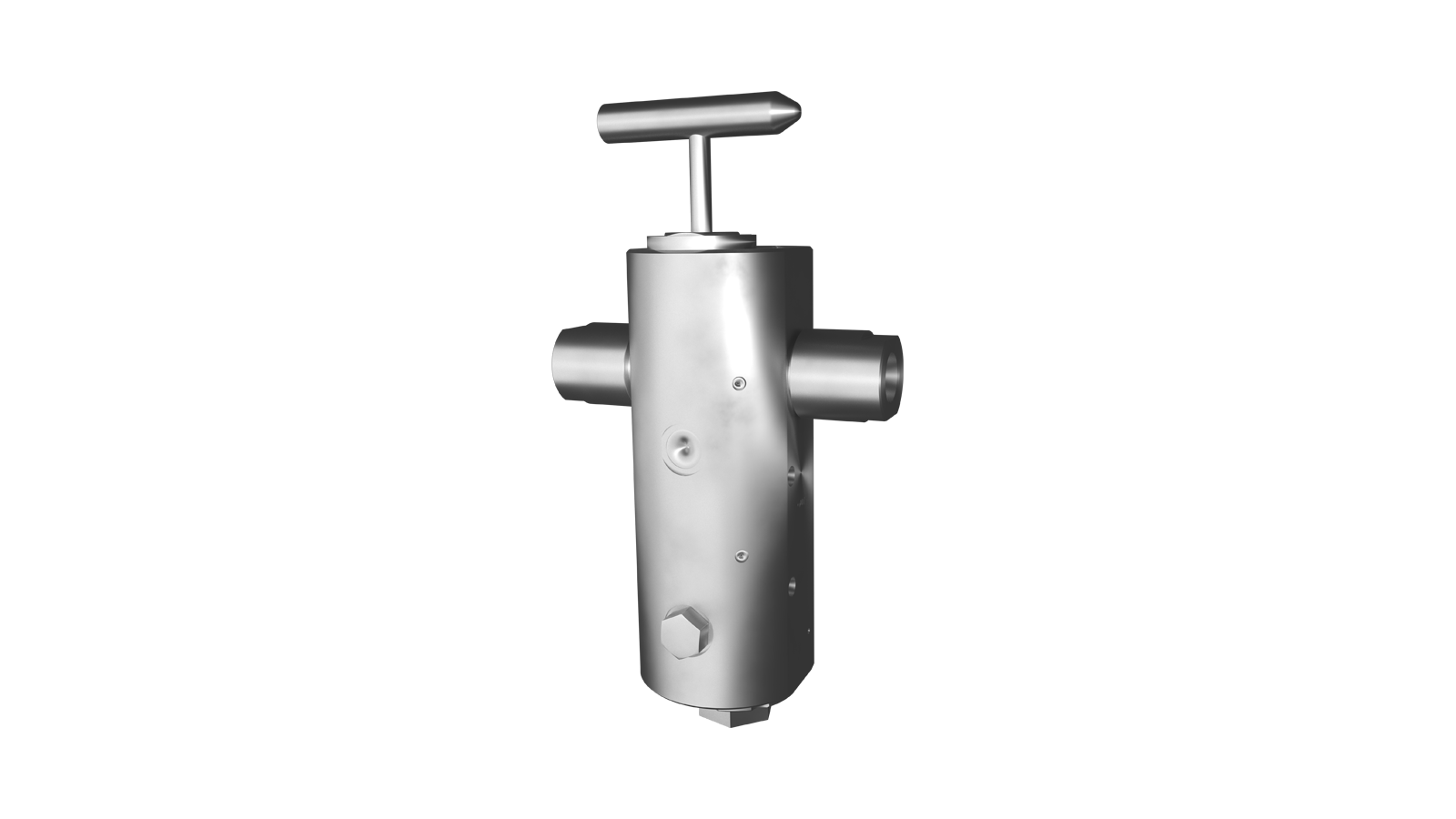

The SF10000NMFE is SkoFlo's Chemical Injection Metering Valve (CIMV) for high-flow surface operations with a working pressure rating of 10,000 psi.
SkoFlo CIMVs use an innovative pressure independent regulator that allows chemicals to be distributed at different injection points from a common line. The pressure independent regulator also responds instantaneously to system disturbances and pressure changes to maintain a constant flow rate. This contributes to unmatched flow stability and field proven reliability.
Applications
The SF10000NMFE is designed to be installed topside for high pressure applications and the injection of high flow chemicals such as MEG and Methanol.
Benefits
Proprietary Pressure Independent Technology
SkoFlo High Flow CIMVs utilize proprietary and field proven pressure independent technology, allowing for continuous flow regulation with instantaneous response to system changes. This results in unmatched flow stability in high flow multi-point injection systems, ensuring consistent and accurate flow rates regardless of pressure fluctuations and optimal debris management. Pressure independent technology is crucial for maintaining chemical injection performance.
Features
- Maximum working pressure 10,000 psi (690 bar)
- Flow ranges from 0.1 - 12 US GPM (22.7 - 2,725 LPH)
- 48:1 turndown ratio
- Compatible sealing with all chemicals
- Vertical or Horizontal installation mounting
- Manual or Actuator controlled
