SF15000HTVB

Overview

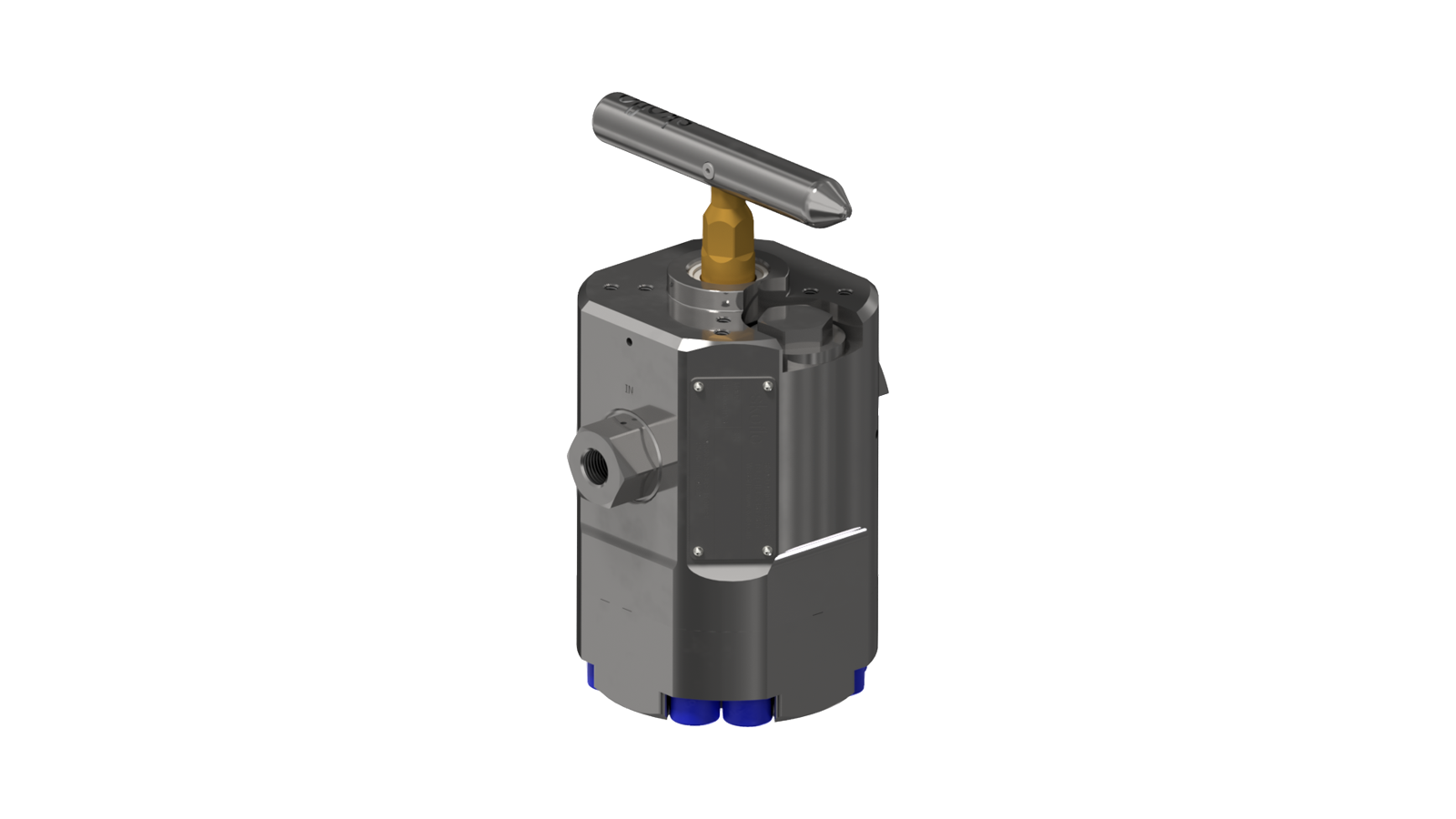

The SF15000HTVB is SkoFlo's Chemical Injection Metering Valve (CIMV) for low-flow surface operations with a working pressure rating of 15,000 psi.

SkoFlo CIMVs use an innovative pressure independent regulator that allows chemicals to be distributed at different injection points from a common line. The pressure independent regulator also responds instantaneously to system disturbances and pressure changes to maintain a constant flow rate. This contributes to unmatched flow stability and field proven reliability.



Applications

The SF15000HTVB is designed to be installed topside for the injection of chemicals such as Scale, Corrosion and Wax Inhibitors.



Benefits

Proprietary Pressure Independent Technology

SkoFlo Low Flow CIMVs utilize proprietary and field proven pressure independent technology, allowing for continuous flow regulation with instantaneous response to system changes. This results in unmatched flow stability in low flow multi-point injection systems, ensuring consistent and accurate flow rates regardless of pressure fluctuations and optimal debris management. Pressure independent technology is crucial for maintaining chemical injection performance.

High Pressure Stage

High Pressure Stage limits the pressure drop across the primary stage to minimize cavitation for maximum reliability at a maximum intermittent pressure drop at full scale flow of up to 15,000 psi and a maximum continuous pressure drop up to 9,000 psi at full scale flow.



Features

  • Maximum working pressure 15,000 psi (1034 bar)
  • Flow ranges from 0.6 - 2500 US GPD (0.09 - 394 LPH)
  • Multi-Stage design for continuous operation with high pressure drop
  • 1000:1 turndown ratio
  • Compatible sealing with all chemicals
  • Vertical or Horizontal installation mounting
  • Manual or Actuator controlled
